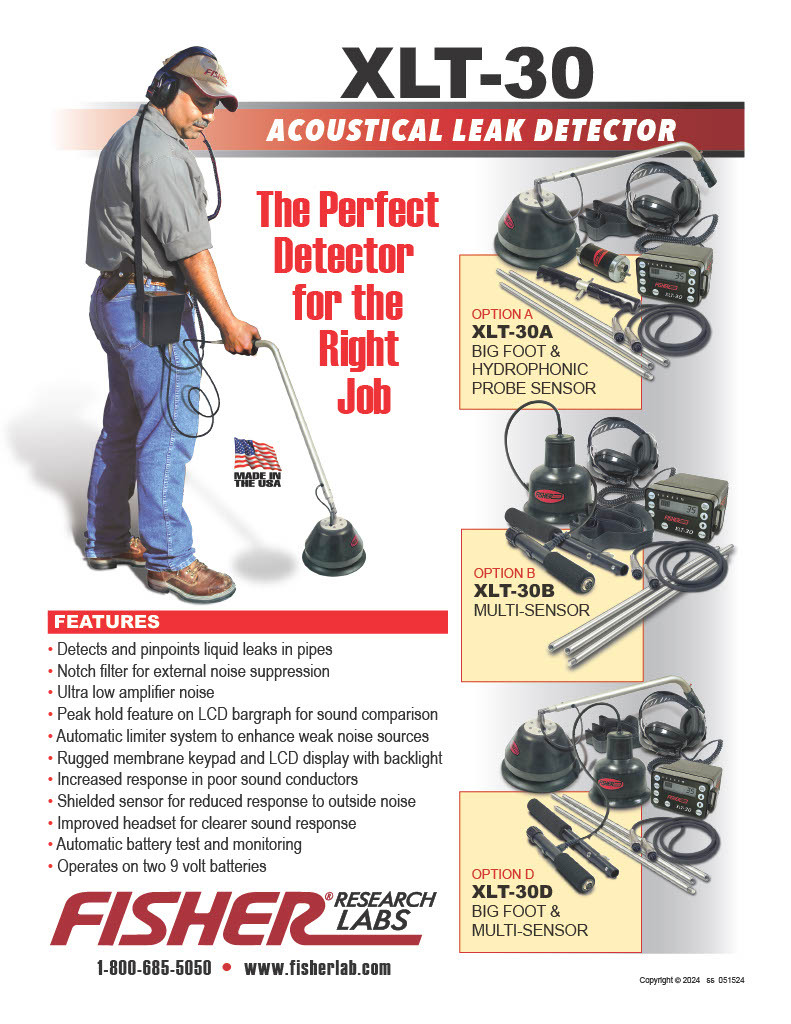

Fisher XLT-30B Acoustical Leak Detector

Option B - Multi-Sensor Microphone

The XLT-30 takes leak detection to a new level with advanced electronic amplification and filtering. An all tactile keypad along with an easy to read digital display enables even the novice to become proficient at leak detection. The advanced microprocessor enables ENHANCEMENT of the weakest sounds like those in non-metallic pipes or those in sound muffling conditions. The XLT-30 is also designed to reject most loud interfering noises like wind, motors, and traffic.

New to the filtering selection is a Notch feature that allows independent suppression of an outside interfering sound, allowing the user to selectively tune to the desired leak noise. In the Fisher tradition, the XLT-30 is affordable, tough, and simple to use while providing maximum performance. A two year limited warranty comes standard with the unit.

2 Year Warranty: Fisher warrants the XLT-30 to be free of defects in materials and workmanship when it is shipped from the factory. The terms of this warranty are fully explained in a warranty registration card that accompanies the instrument. Complete factory and field service facilities support the warranty.

*Please call 1-888-KELLYCO for warranty information outside the United States.

Features:

• Operating Frequency:
• 60 Hz – 6 kHz, Gain = 95 db
• 20 Hz – 60 Hz, Gain > 90 dB
• Warranty : 2 Year Limited
• Total Weight : 10 lbs (4.5 kg)
• Audio Output : High Performance Headphones (64 ohms)
• Visual Output : LCD Bar Graph and 2-Digit Numeric Display
• 4 Frequency Filters : Independent Notch Filter, Low Pass, High Pass and Band Pass
• All Pass : 60 Hz to 6 kHz
• Low Pass : Adjustable Cut-Off Frequency from 150 Hz to 2.4 kHz
• Band Pass : Adjustable Center Frequency from 150 Hz to 2.4 kHz
• High Pass : Adjustable Pass Band Frequency from 150 Hz to 2.4 kHz
• Notch Filter : Adjustable Center Frequency Rejection from 150 Hz to 2.4 kHz

Technical Specifications:

• 2 Year Warranty
• Operational Frequency :
• 60 Hz – 6 kHz, Gain = 95 db
• 20 Hz – 60 Hz, Gain > 90 dB
• Filter Types : Independent Notch Filter, Low Pass, High Pass and Band Pass
• All Pass : 60 Hz to 6 kHz
• Low Pass : Adjustable Cut-Off Frequency from 150 Hz to 2.4 kHz
• Band Pass : Adjustable Center Frequency from 150 Hz to 2.4 kHz
• High Pass : Adjustable Pass Band Frequency from 150 Hz to 2.4 kHz
• Notch Filter : Adjustable Center Frequency Rejection from 150 Hz to 2.4 kHz
• Output Indications :
• Audio : High Performance Headphones (64 ohms)
• Visual : LCD Bar Graph and 2-Digit Numeric Display
• General :
• Weight : 10 lbs (4.5 kg)
• Battery Test : Automatic
• Battery Type : Two 9 Volt Alkaline
• Grade of Protection: Splash Proof
• Battery Life : 50 Hours (approximate)
• Case Dimensions : 8.25" x 8.5" x 32.5"

Features:

• Ultra Low Amplifier Noise
• Automatic Battery Test and Monitoring
• Notch Filter for External Noise Suppression
• Detects and Pinpoints Liquid Leaks in Pipes
• Tactile Keypad & Digital Display for Easy Use
• Improved Headset for Clearer Sound Response
• Increased Response in Poor Sound Conductors
• Shielded Sensor for Reduced Response to Outside Noise
• Automatic Limiter System to Enhance Weak Noise Sources
• Peak Hold Feature on LCD Bar Graph for Sound Comparison
